ECO-DIM.05 WiFi LED Dimmer Duo – Slimme LED-dimmer voor 2 lichtgroepen

EcoDim Slimme WiFi Dua draaidimmer ECO-DIM.05 WiFi.

Installatie van de ECO-DIM.05 WiFi LED Dimmer Duo.

Wireless control via WiFi and app

Suitable for 2 light groups, dimming from 0-100W per channel

Wi-Fi

EcoDim

EcoDim Smart Duo LED WiFi Built-in Dimmer (ECO-DIM.05 WiFi)

Name: EcoDim Smart Duo LED WiFi Built-in Dimmer (ECO-DIM.05 WiFi)
Brand: EcoDim
SKU: ECO-DIM.05-WiFi
Price: 69.95 EUR
Availability: InStock

€69,95

Tax included.

EAN: 8719322373571

Product variants

Quantity

Smart Rotary Dimmer

The ECO-DIM.05 WiFi LED Dimmer Duo is a two-part smart LED rotary dimmer. With this dimmer, you can control two separate lighting groups manually, but it can also be controlled wirelessly via WiFi.

The ECO-DIM.05 WiFi is compatible with Google Home, Amazon Alexa, and Tuya Smart apps. This makes this dimmer the ideal solution for easily and quickly making your lighting smart. This dimmer is WiFi certified.

Features:

Control: Push/rotary knob and App.
Dimming power: 0-100W LED per channel.
MIN - MAX adjustment: Easily set the minimum and maximum dimming level.
Trailing-edge (RC): Compatible with dimmable LED lamps and LED drivers.
Soft-start function: Extend the lifespan of LED lamps.
Memory function: Dimming settings are retained after power failure.
Wireless control: Via smartphone, Google Home, and Alexa.

Suitable for all dimmer knobs with D-shaped hole, including Busch-Jaeger, Gira, Jung, Berker, and Peha.

Verzenden & Garantie

14 dagen bedenktijd
Gratis retourneren
Producten worden direct verzonden mits op voorraad
Verzending via DHL of PostNL

Compatibiliteit

Works with WiFi (2.4GHz) – No hub required
Control via Tuya Smart app (iOS & Android)
Compatible with Google Home & Amazon Alexa
Suitable for dimmable LED lamps and LED drivers (trailing edge – RC)
Fits cover material from Busch-Jaeger, Gira, Jung, Berker and Peha

ECO-DIM.05-WIFI

The ECO-DIM.05-WIFI from EcoDim is a smart WiFi dimmer that allows you to dim two lighting groups independently. Perfect for replacing your existing duo dimmer with it and making it smart in an instant.

Protection

Protection against overheating, overload (switches itself off in case of overload), and protection against external interference.

Noiselessly

All LED lamps (operating on phase cut-off/trailing edge/tronic/RC) are dimmed silently. No buzzing LED dimmer or LED lamps!

Lightfastness

The MIN and MAX potentiometers allow you to manually improve dimmability and light stability. This ensures you always get the best dimming performance from any LED lamp!

Kenmerken

ECO-DIM.05 WiFi LED Dimmer Duo

Smart WiFi dimmer without hub– Direct pairing with the Tuya Smart app.
Suitable for two lighting groups– 0-100W per channel.
Phase-cut (RC)– Compatible with dimmable LED lamps and LED drivers.
Wireless control– Via smartphone, Google Home, and Alexa.
Adjustable minimum and maximum dimming level– Prevents flickering LED lamps.
Easy installation– Fits into standard flush-mounted boxes and works with common cover materials.
Soft-start function– Extends the lifespan of LED lamps.
Memory function– Dimming settings are retained after a power outage.

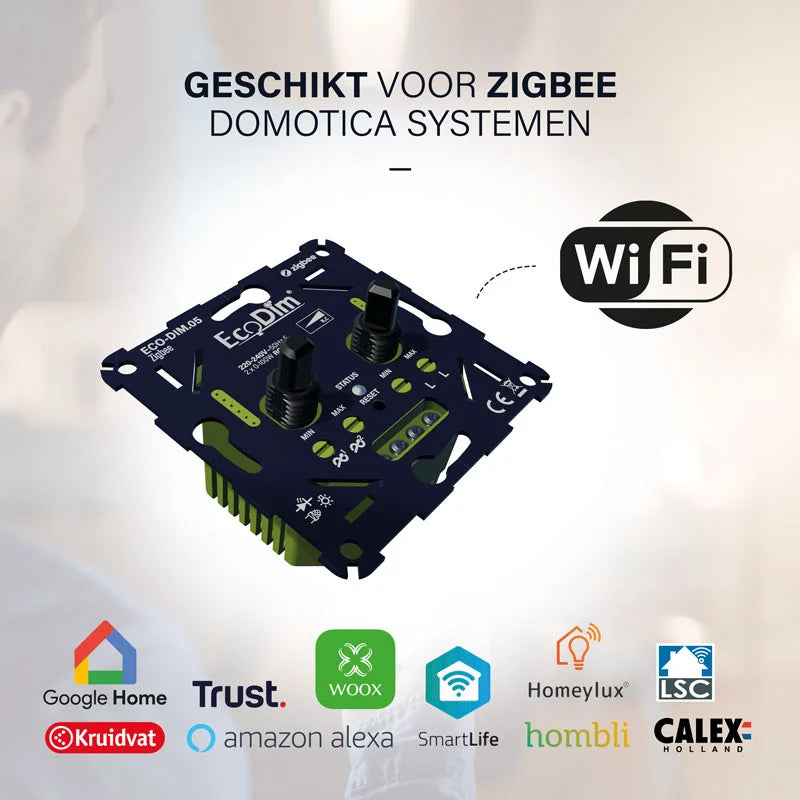

Geschikte smarthome apps

The WiFi LED dimmer can be used in combination with most WiFi smart home systems. Below are some apps and hubs that the ECO-DIM.05 WiFi can be combined with.

Google Home/Nest
Amazon Alexa
Nedis
KlikAanKlikUit
Woox
Hombli
Homeylux
Calex
Kruidvat
LSC Smart connect (Action)

What you can do with the ECO-DIM.05 WiFi LED Duo Dimmer

With the ECO-DIM.05 WiFiyou can easily replace your existing duo dimmer and make it smart. With this smart dimmer, you have full control over your lighting. Thanks to the dual dimming function, you can independently dim and manage two light groups via WiFi or voice assistants (see further down in the description).

Advantages at a glance:

Control your lighting wirelessly via the Tuya Smart app.
Automate your lighting with schedules and scenes.
Use Google Home or Alexa to control lighting with your voice.
Set the minimum and maximum dimming level to prevent flickering.
Ensure a long lifespan for LED lamps thanks to soft-start technology.

The ECO-DIM.05 WiFi is suitable for:

Dimmable LED lamps with trailing edge (2x 0-100W)
Dimmable energy/CFL lamps (2x 0-100W)
Dimmable 230V halogen lamps (2x 0-100W)
Dimmable 230V incandescent lamps (2x 0-100W)
Low-voltage lamps with dimmable electronic/RC transformer or LED driver (2x 0-100W)

Not suitable for use with iron core transformers

Suitable lamp brands:

IKEA (excluding Tradfri)
Philips (excluding Hue)
Osram
Megaman
Sylvania
Sencys (Praxis)
Livarno Lux (Lidl)
Ecobright

Not suitable:

Pharox
Calex E14, with twisted rod or Gold series
Handson
Smart LED lamps, such as Hue LED lamps/Tradfri LED lamps, etc.

Please note: Never place a mixed load (e.g., a combination of LED and halogen) on one dimmer. This smart WiFi dimmer is also not suitable for halogen lamps with an old iron core transformer.

Installation and Configuration

The installation of the smart ECO-DIM.05 WiFi LED Dimmer is simple and does not require additional accessories.

Turn off the power and remove the existing switch or dimmer.
Connect the dimmer to the existing wiring.
Mount the dimmer in the flush-mounted box.
Download the Tuya Smart app and connect the dimmer via WiFi.
Set the light intensity and personalize your lighting schedules.

Package Contents

ECO-DIM.05 WiFi LED Dimmer Duo (1x)
Mounting material
User manual

Smart Functions & App Control

The ECO-DIM.05 WiFi LED Dimmer uses the Tuya Smart app. This is the app for WiFi switches and you will also see it with other well-known brands.

With this app you can:

Precisely adjust the brightness of your lamps.
Set automatic schedules for energy saving.
Link multiple devices and create scenes for smart lighting.
Use Google Home and Alexa compatibility for voice control.

Thanks to WiFi connectivity, the dimmer works without an additional hub, making installation and use even easier.

Energy-efficient & Durable Design

The ECO-DIM.05 WiFi is designed with trailing-edge technology (RC), which offers silent operationand an energy-efficient dimming experience. This makes the dimmer ideal for LED lighting, without annoying noises or flickering lamps.

Conclusion

The ECO-DIM.05 WiFi LED Dimmer Duo is a smart WiFi dimmer for anyone who wants to control their lighting wirelessly. Thanks to its dual dimming function, compatibility with Tuya Smart, Google Home and Alexa, and easy installation, this dimmer is perfect for both home use and business applications.

Are you looking for a smart WiFi LED dimmer with dual dimming function that you can control without an additional hub? Then the ECO-DIM.05 WiFi LED Dimmer Duo is the ideal choice.

Merk	EcoDim
EAN code	8719322373694
Artikelnaam fabrikant	ECO-DIM.05 WiFi
Aansluitvermogen LED	2 x 0-100W
Max. aansluitvermogen LED	2 x 100W
Aansluiting	2-draads
Dimtechniek	Fase afsnijding (RC)
Frequentie	2,4 GHz
Input (volt)	230V
Lengte	70,5 mm
Breedte	70,5 mm
Inbouwdiepte	32,6 mm
RAL-kleur	RAL5017
IP-waarde	IP20
Keurmerken	CE, RoHS

Veelgestelde Vragen

Do I need a hub for this dimmer?

No, the ECO-DIM.05 WiFi works without a hub and connects directly to WiFi.

Can I use the dimmer with Google Home and Alexa?

Yes, this dimmer is fully compatible with Google Home and Amazon Alexa.

Does this dimmer work with all LED lamps?

The dimmer supports reverse phase-cut (RC) and is suitable for most dimmable LED lamps.
